全自动立式包装机

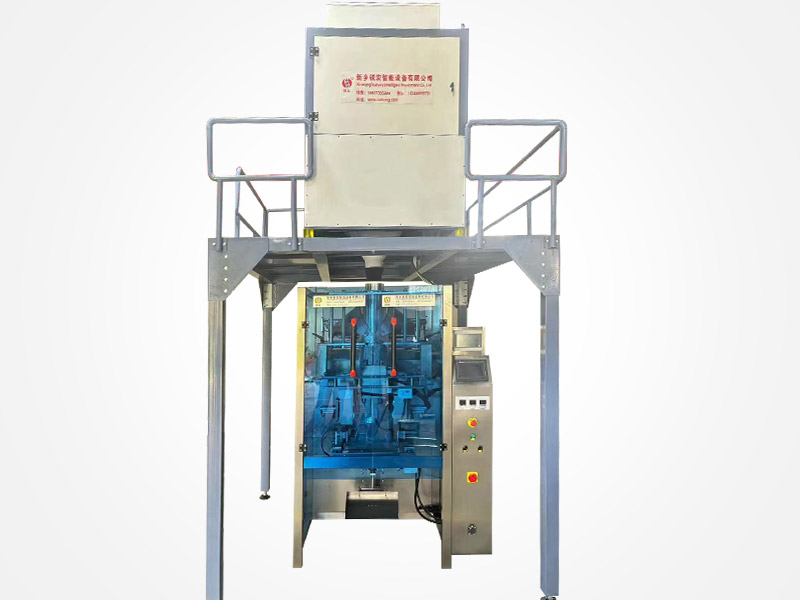

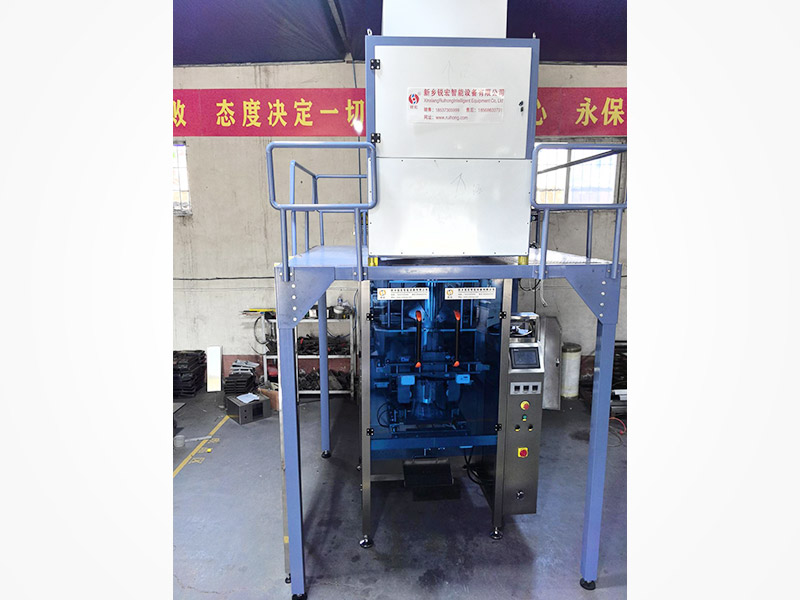

RH-720全自动包装机

源头厂家 技术创新 高性价比

厂家直供

资质齐全

免费指导

售后完善

技术特点:

1、Chinese and English color touch screen display, intuitive and simpleoperation.中英文彩色触摸屏显示,操作直观,简单。

2、PLC computer control system, more stable operation, can adjust anyparameters without stopping the machinePLC电脑控制系统,运行更稳定,可不停机调整任何参数。马、Can store 10 sets of packaging parameters, easy to replace the

packaging specifications.

可储存十组参数,更换品种更准确。

4、Using servo motors for vacuum film pulling and suction for moreaccurate positioning.

采用伺服电机真空拉膜吸膜,定位跟准确。Using a temperature controller, the temperature difference can becontrolled within 2 °C.

独立温控系统,温差控制在2℃C以内。

6、The horizontal and vertical sealing temperatures are independentlycontrolled, making it suitable for various packaging materials such ascomposite films and PE films.

横、纵封温度独立控制,能良好的适用各种复合膜、PE膜等包装材料。


技术参数:

机 型(TYPE)RH-720
制袋长度(Bag length)100-500mm(L)250-400mm(w)
制袋宽度(Bag width)15-35bag/min
包装速度(Packing speed)0.65mpa
气压(Air consumption)耗气量(Gas consumption)0.8m/min
电源(Power)220V
功率(Power)700W
外型尺寸(Dimension)(L)1600mmx(w)1530mmx(H)2110mm
重量(Machine weight )650kg


核心实力
应用范围
日化
猫砂
粮食
干果
医药
五金
