全自动立式包装机

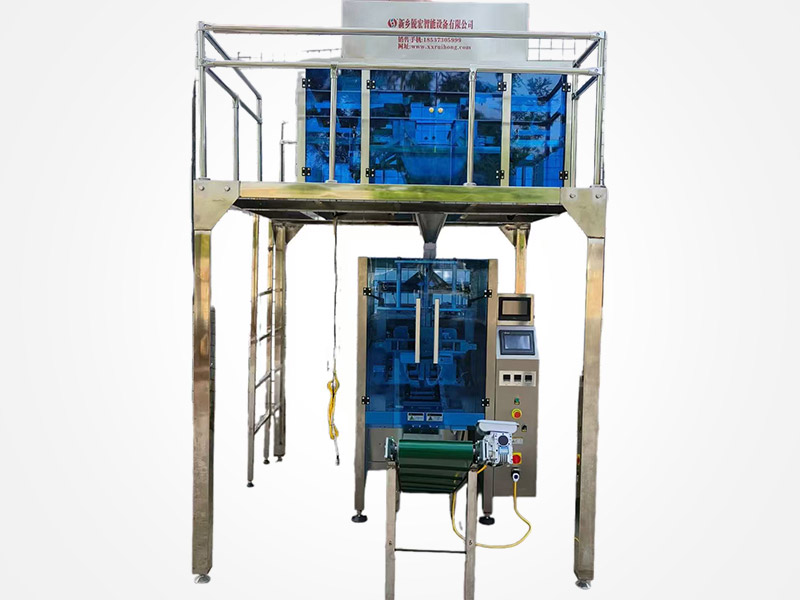

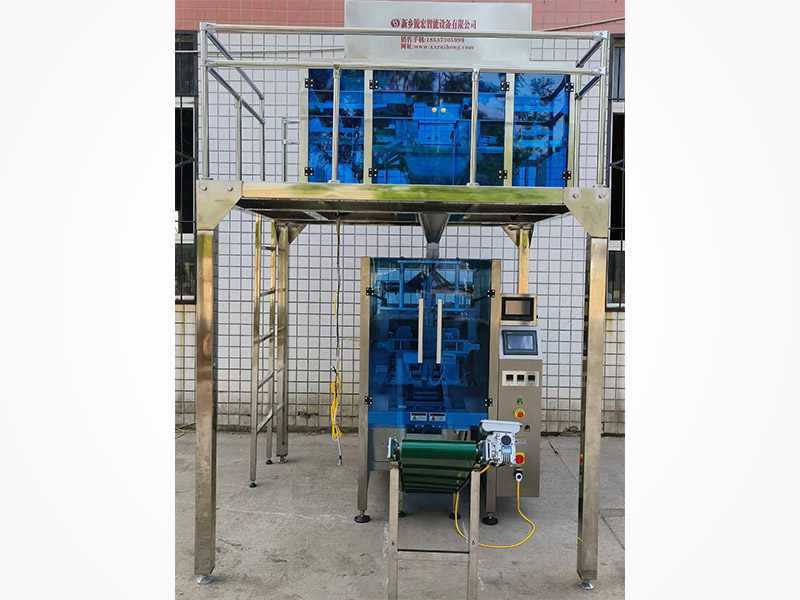

RH-420立式全自动包装机

源头厂家 技术创新 高性价比

厂家直供

资质齐全

免费指导

售后完善

技术特点:

1. Clear displayofvarious working states on the touch screen,operationindicator lights, easy and intuitive operation.
触摸屏清楚显示各工作状态、操作指示灯,操作简便直观。
2. Can accommodate 10 product formulas for quick packaging changes.
可预置10个产品的配方,适应快速更换产品包装。
3. Using a temperature controller, the temperature differencecan be controlled within 2 °C.

采用智能温控器,温差可控制在2°C以内。

4. The sealing position and deviation correction can bedirectly adjusted on the touch screen without stopping the machine.不停机可直接在触摸屏上调整封切位置和纠偏。

5. Paired with a horizontal toothed seal, the packaging is more secure, Youcan also choose straight, twill, mesh, etc.

配合横纹齿型封口,包装更加牢固;还可选用直纹、斜纹、网纹等。

6. This device can produce various bag types, such as flat seals, handbags.punched bags, etc.

该设备能制多种袋型,如平面封、手提袋、冲孔袋。

7. If the packaging film is made of single-layer PE material, a special PE filmsealing device can be optionallyequipped.如果包装膜是单层的PE材料,可选配特殊PE膜专用封口装置。


技 术 参 数 :

机 型(TYPE)RH-420
制袋长度(Bag length)80-420mm(L)
制袋宽度(Bag width)100-200mm(w)
薄膜宽度(Max width of roll film420mm
包装速度(Packing speed)20-60bag/min
气压(Air consumption)0.65mpa
耗气量(Gas consumption)0.4m/min
电压(Power voltage)220V/50HZ
功率(Power)3.0KW
外型尺寸(Dimension)(L)2088mmx(w)2088mmx(H)3800mm
机器重量(Machine weight )1200kg


核心实力
应用范围
日化
猫砂
粮食
干果
医药
五金
